ELECTRIC LIFTING TROLLEYS

” Increase efficiency, safety and ergonomics “

Lightweight PROTEMA Electric Lifter

Protema electric lifts are very versatile and makes lifting and moving goods easier in all types of industries. The Protema lifters are available in seven basic models with a wide choice of accessories and application tools, many of which are custom made solutions that have been designed and developed over the years with the help of many customers and Protema lifter users. Protema lifters are battery operated and designed with a robust chassis and reliable electronics. These electric lifting trolleys are extremely lightweight with a built-in charger, easy to use for all operators.

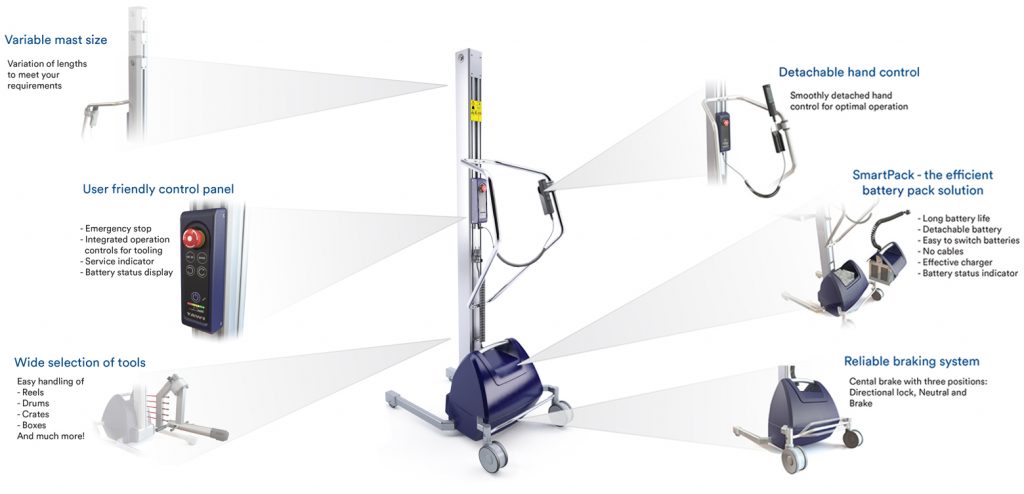

Safe and reliable



– Equippted with SafeDrive; a safety mechanism ensuring that if a tool hits an object during lowering, it will stop immediately.

– The lifter is belt driven, resulting in safe, quiet and smooth oil free drive.

– Circuit board for speed control and overload protection on all models.


Flexible



– Modular construction, making it easy to adjust the lifter for various applications.

– The standard series have lifting capacities between 40-250kg.

– On several models the measures of the wheels makes it possible to drive the lifter into a Euro-pallet in three different ways.


Ergonomic



– Minimizes the strain on backs, knees and shoulders.

– Ergonomic handle for easy and comfortable operation.

– High quality and robust wheels for smooth and simple transportation with and without load.


Efficient



– Equipped with SmartPack; a detachable battery pack making it easy to switch batteries. No cables.

– Effective battery charger making the full charging cycle fast.

– Charging indicator clearly showing the battery charging status.


PROTEMA MODELS

PRO40
with platform

PRO80
with platform

PRO140
with platform

PRO180
with platform

PRO250
with platform

PRO100ESE
with Easy Squeeze

PRO200ESE
with Easy Squeeze

Stainless Steel
with platform

PRO40PRO80PRO140PRO180
Lifting capacity (kg)4080140180
Stroke mm
short/medium/long
-/1040/-850/1400/1950840/1390/1940840/1390/1940
Weight of unit kg
short/medium/long
-/41 /-46/50/5369/73/7877/ 81/86
Total height of unit mm short/medium/long-/1640/-1440/1990/25401440/1990/25401440/1990/2540
Battery charging procedure100-240V, grounded
50-60 Hz
100-240V, grounded
50-60 Hz
100-240V, grounded
50-60 Hz
100-240V, grounded
50-60 Hz
Lifts per charge40kg x 1m x 100 times80kg x 1m x 100 times140kg x 1m x 100 times180kg x 1m x 100 times
Up and down motionsControl panel (one speed)Hand control (two speed)Hand control (two speed)Hand control (two speed)
Front wheelsSwivellingSwivellingFixedFixed
Brake systemRear wheels separately brakedCentral brake with directional lockCentral brake with directional lockCentral brake with directional lock
Overload protectionIncorporated in circuit loadIncorporated in circuit loadIncorporated in circuit loadIncorporated in circuit load

PRO250PRO100ESEPRO200ESEStainless steel
Lifting capacity (kg)250100200Legs, wheels and handle in stainless steel. Equipped with a white FDA approved cover.

Available for models PRO140-250 including 100ESE and 200ESE.

For technical details see separate model.
Stroke mm
short/medium/long
-/1360/1910-/1390/1940-/1360/1910
Weight of unit kg
short/medium/ long
- /107/113kg- /115/120kg- /152/158kg
Total height of unit mm short/medium/long-/1990/2540-/1990/2540-/1990/2540
Battery charging procedure100-240V, grounded
50-60 Hz
100-240V, grounded
50-60 Hz
100-240V, grounded
50-60 Hz
Lifts per charge250kg x 1m x 100 times100kg x 1m x 100 times200kg x 1m x 100 times
Up and down motionsHand control (two speed)Hand control (two speed)Hand control (two speed)
Front wheelsFixedFixedFixed
Brake systemCentral brake with directional lockCentral brake with directional lockCentral brake with directional lock
Overload protectionIncorporated in circuit loadIncorporated in circuit loadIncorporated in circuit load

TOOLS AND ACCESSORIES

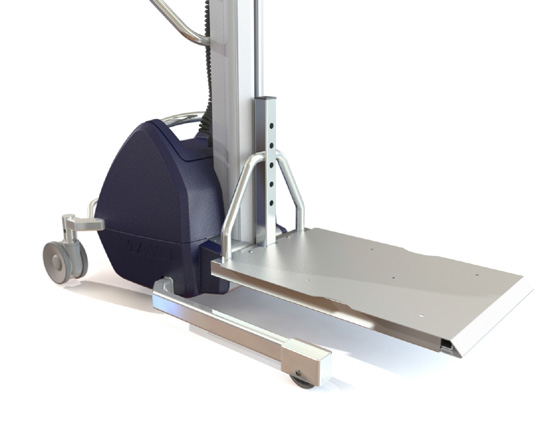

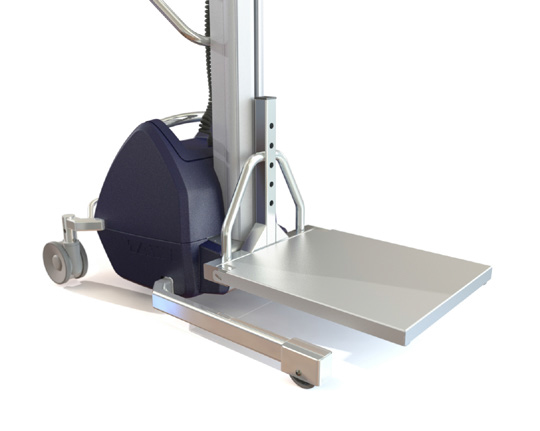

Platform
Ergonomic handling of various goods. Two surface materials: stainless steel and checker plate.

Fold up platform
Flexible tool with fold up platform and fork tool. Lift boxes and crates with the same tool.

Boom
Ergonomic reel handling. Lift and transport reels onto shafts and machines without effort.

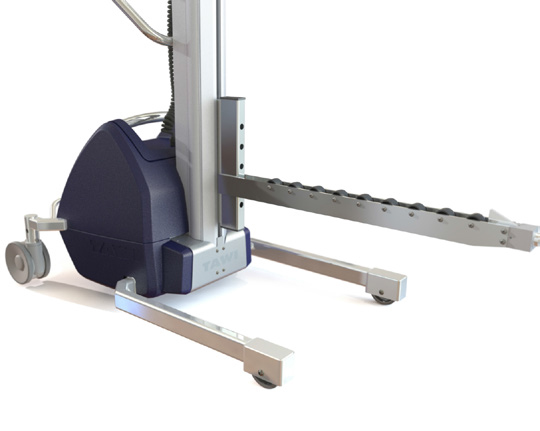

Roller boom
Equipped with rollers for effortless loading and unloading of reels. Safety pin for safe transportation.

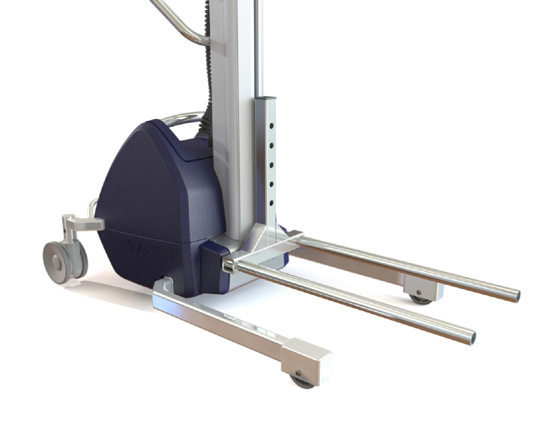

Tube fork
Easy handling of reels from their outer surface.

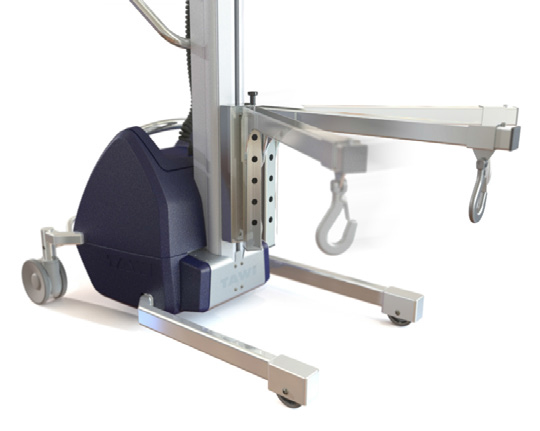

Crane arm with hook
Handling of various goods. Optimal for reaching into narrow spaces.

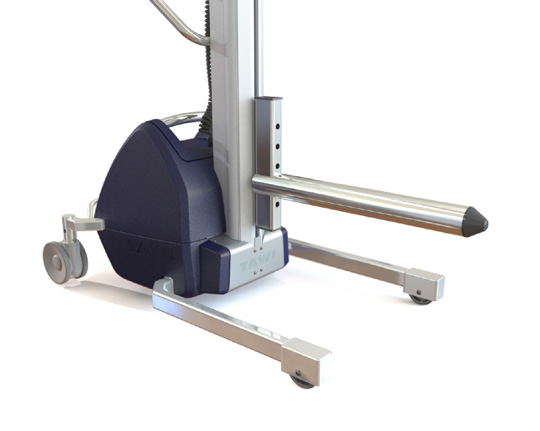

Fork for shafts
Precise handling of reels on shafts into machine.

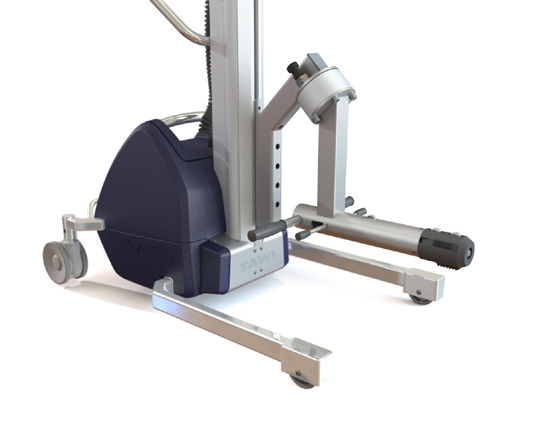

Coregripper
Reel handling from the core, Ø76 and Ø152. Rotate from vertical to horizontal position.

Ladder
Optimal for pushing goods from the tool onto a shelf. Can be mounted on both sides of the lifter.

Quick coupling
Makes it possible to easily switch tools on the lifter.

Articulating adapter
Enables easy articulation of tools. Can be mounted between all types of tools.

TOOLS AND ACCESSORIES



Lifting crates


Lift and empty contents

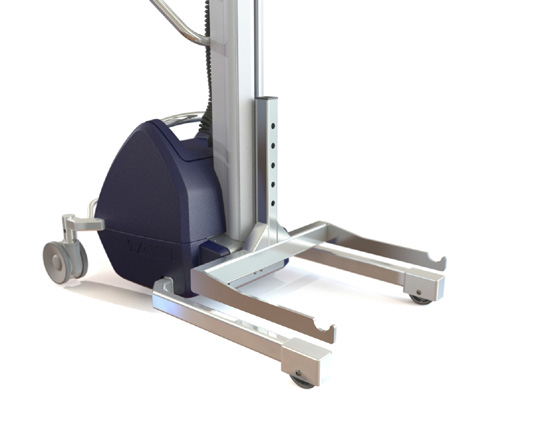

Forked tool


Lifting boxes


Cartons of milk


Lifting drums


Pharmacy


Library


Lifting in industrial kitchen

Roll lifter





Lift/Tilt



Lift
